Garage Door Buying and Information Guide

Garage doors can make up a large portion of your home's front facade and be a big part of the curb appeal. Before you buy, learn about the options, cost and how well they are insulated.

June 22, 2020
Courtyard and Driveway With Grass Growing Between Pavers in Daytime

Courtyard and Driveway With Grass Between Paving Stones

The courtyard of this Encino, CA mansion features grass growing between the concrete pads that make up the front courtyard and driveway.

Photo by: Pinnacle Estate Properties, a member of Luxury Portfolio International

Pinnacle Estate Properties, a member of Luxury Portfolio International

By: John Riha

Related To:

First impressions, curb appeal, best foot forward — your garage door does it all when it comes to the appearance of your home. That's especially true of suburban homes built in the last several decades. Designed for drive-right-in accessibility, many have garages that occupy up to 30 percent of the front facade.

Small wonder that upgrading a garage door is a popular home improvement project. In fact, according to the 2019 Cost vs. Value report from Remodeling magazine, a garage door replacement is one of the few projects in the survey that recouped more than 90 percent of its initial cost when a house is resold.

Getting Started

If you're ready to scout out styles and options for a new garage door, take a deep breath: there are a lot of choices. Garage door manufacturer Wayne-Dalton, for example, boasts 19 design options, 10 window patterns and 15 colors for its Model 9700 door alone. That's a possible 2,850 combinations.

Thankfully, many manufacturers' websites are equipped with digital visualization tools that help you sort through possibilities to get started. These interactive tools allow you to upload a photo of your house and overlay hundreds of styles, window shapes and colors. When you're finished, send your design to the manufacturer for a customized quote.

Back to Basics

Manufacturers have their proprietary techniques and methods for putting together garage doors, but the basics are:

  • Single-layer construction features a simple outer layer of steel, fiberglass or engineered wood. The basic doors are lightweight, easy on springs and are low cost. Their insulating value is negligible.
  • Double-layer construction has an inner and outer skin sandwiched around a layer of polystyrene board for rigidity with an insulating value between R-4 and R-7.
  • Premium construction has inner and outer layers of high-quality steel, wood or fiberglass sandwiched around a thick layer of polystyrene or polyurethane insulation for maximum stiffness with insulating values that exceed R-15.

Types and Costs

With so many material options, it's important to consider the pros and cons of each type of garage door — including basic information, insulating value and cost. Remember that with insulation, it's all about the R-value — the higher, the better.

Steel

Stained composite overlays are adhered to a steel door with a woodgrain paint finish.

Clopay Wood Carriage Style Garage Door

This garage door is constructed with steel for strength and durability while molded, faux-wood overlays and cross-beam detailing create the popular carriage-style look.

Photo by: Courtesy of Clopay

Courtesy of Clopay

This garage door is constructed with steel for strength and durability while molded, faux-wood overlays and cross-beam detailing create the popular carriage-style look.

Steel garage doors feature outer layers of heavy-gauge steel that are available in traditional frame-and-panel styles or embossed to mimic wood grain and even stucco. Overlays, such as moldings and cross-buck designs, give the look of carriage doors. Foam cores add strength and insulating values, and some models are rated to withstand winds of 120 mph or more.

Most steel doors can be purchased with factory-applied finishes and are virtually maintenance-free. Some manufacturers offer hundreds of color options. Looking for a DIY project? Order your door primed and do the painting yourself.

Heads up: Steel can dent and is hard to repair.

Insulating value: R-6 to R-20

Cost for a 16x7 double door: $750 to $3,900

Fiberglass

CI-Amarr_Wood-Garage-Door-Tudor-Style_s4x3

Tough and versatile, fiberglass garage doors are the easiest to maintain and come in nearly any design and color. Here, molded fiberglass gives the garage doors a realistic wood look.

Photo by: Courtesy of Amarr

Courtesy of Amarr

Tough and versatile, fiberglass garage doors are the easiest to maintain and come in nearly any design and color. Here, molded fiberglass gives the garage doors a realistic wood look.

Fiberglass doors are known for their resistance to dents, moisture, insects, warping and changes in humidity. Thick outer skins of fiberglass surround an inner foam core and a steel framework that provides strength and stability. Fiberglass excels at mimicking the colors and grain patterns of real woods such as cherry, oak and mahogany.

Heads up: Single-layer versions can be brittle — a layer of insulation adds stiffness.

Insulating value: R-4 to R-12

Cost for a 16x7 double door: $1,200 to $2,500

Wood

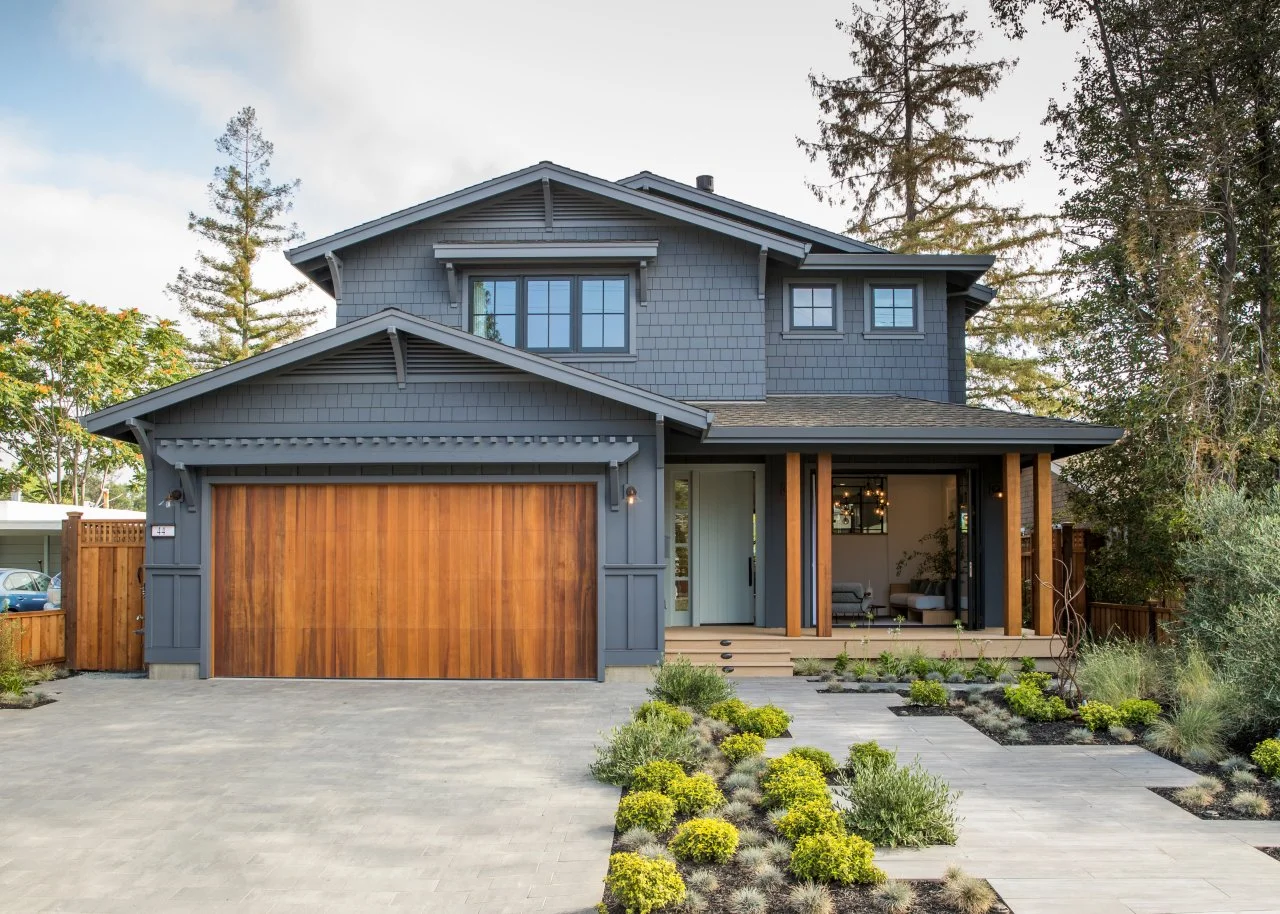

Gray Exterior and Garage

Gray Exterior and Front Yard

The dark exterior of this home draws attention to the wooden garage door and matching porch columns for a pop of warm contrast.

Photo by: Thomas Story

Thomas Story

The dark exterior of this home draws attention to the wooden garage door and matching porch columns for a pop of warm contrast.

Not as strong as steel nor as tough as fiberglass, all-wood garage doors made from moisture-resistant cedar, redwood and cypress provide curb appeal like no other. Note, however, that even wood comes at various prices and levels of quality. The best quality doors feature all-wood frames and panels. Opt for polystyrene backing to add insulating value.

Heads up: Real wood needs periodic refinishing.

Insulating value: R-3 to R-8.

Cost for a 16x7 double door: $1,200 to $1,800 for average quality; $2,000 to $4,000 and up for superior quality

Aluminum Frame

The door can be customized with a variety of tempered glass options to control natural light and privacy such as clear, frosted, tinted, and mirrored  glass.

The frame rust- and corrosion-resistant aluminum frame comes in powder-coat and anodized finishes. Custom colors are also offered.

These doors are not just for the garage – they are also used in family rooms, kitchen, and outdoor sheds/studios to blur the lines between indoor and outdoor living.

Clopay's Avante Collection - Aluminum and Glass Garage Door

The straight lines of these aluminum-framed doors add a modern element to the home's exterior, while frosted glass panels elevate the look and allow light into the garage during the day.

Photo by: Courtesy of Clopay

Courtesy of Clopay

The straight lines of these aluminum-framed doors add a modern element to the home's exterior, while frosted glass panels elevate the look and allow light into the garage during the day.

These doors have a modernist flair, with panels of tempered glass or acrylic panels set in anodized aluminum frames. Choices of painted or powder-coated frame finishes and glass types make for a contemporary, attractive finished product. If available, insulating and low-E glass helps thermal performance.

Heads up: Glass panels can be fragile.

Insulating value: Insulating glass can provide R-2 to R-4 values.

Cost for a 16x7 double door: $1,500 to $3,500. Highly customized models can exceed $5,000.

Composite Wood

This garage door may look and feel like real wood, but it's made of moisture resistant materials so it won’t rot, warp, or crack. And, like real wood, the doors can be painted or stained.

The cladding and overlays are molded from the species they emulate for realistic grain texture.

The doors come in carriage house, modern, and louver designs.

Clopay’s Canyon Ridge Collection - Faux Wood Composite Garage Doors

These garage doors may look and feel like real wood but are made of moisture-resistant materials that won’t rot, warp or crack. Like real wood, the doors can be painted or stained to match any style.

Photo by: Courtesy of Clopay

Courtesy of Clopay

These garage doors may look and feel like real wood but are made of moisture-resistant materials that won’t rot, warp or crack. Like real wood, the doors can be painted or stained to match any style.

This sandwich-type construction features a strong, insulating core of polystyrene wrapped in composite wood. Composite wood is panels made from wood fibers and weatherproof resins. Many manufacturers use recycled wood fibers for the panels, providing a bit of green factor.

Molded with grain patterns, composite wood can be difficult to distinguish from the real thing. Unlike wood, however, composite doors won’t split, crack or rot. Composite doors come factory finished or can be custom stained or painted.

Heads up: can be nearly as costly as real wood

Insulating value: R-5 to R-8

Cost for a 16x7 double door: $1,200 to $2,200

Vinyl

HGTV Dream Home 2016 Garage Exterior Doors and Paver Drive

Super Storage

Rust-resistant and fade-resistant, vinyl garage doors are incredibly resilient and low maintenance. Vinyl garage doors are great for hot, cold, humid and coastal climes alike.

Rust-resistant and fade-resistant, vinyl garage doors are incredibly resilient and low maintenance. Vinyl garage doors are great for hot, cold, humid and coastal climes alike.

Standard construction sees layers of durable, weatherproof vinyl surrounding an inner core of foam insulation, although the cheapest models lack the foam core. Lightweight and impervious to insects and rot, vinyl doors are very durable. Colors extend throughout the vinyl layers, so scratches don’t show.

Unlike steel, vinyl is resistant to dings and off-target Frisbees; many types come with lifetime warranties. Over the long run, vinyl doors may be a more cost-effective option than steel.

Heads up: Polyvinylchloride (PVC) is considered environmentally unfriendly.

Insulating value: R-4 to R-12

Cost for a 16x7 double door: $1,000 to $3,500
