How to Make a Decorative Pegboard Shelf

Need wall storage but can’t find just the right shelving unit? Try this modern take on an old-school storage idea. It’s easy to build and you can customize the colors however you’d like.

Related To:

Loading Video...

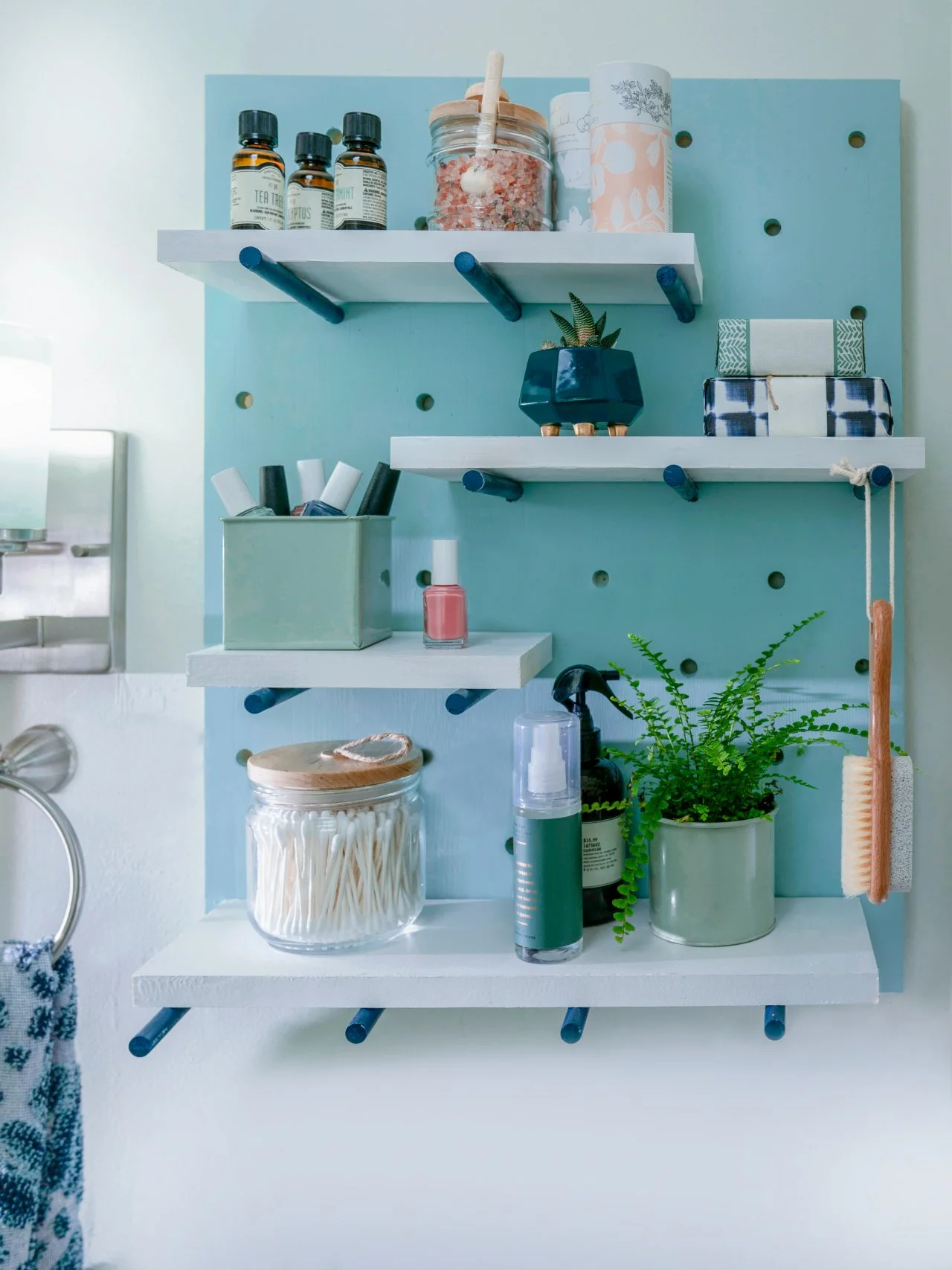

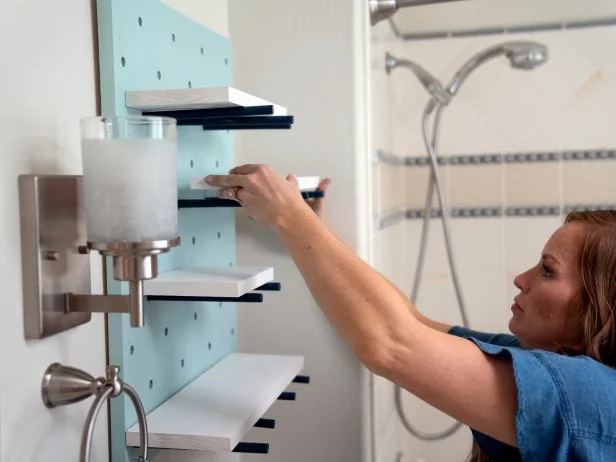

We installed our pegboard shelf in a bathroom, but it would also look adorable in a kitchen, foyer or kid’s room.

Photo by: Gary Payne

Gary Payne

Tools and Materials

1/2” dowels
(1) 1x6 x 8'
1/2” forstner or spade bit
1” x 18” x 24” craft board or plywood
measuring tape
pencil
straight edge

spray primer
spray paint
miter saw, circular saw or hand saw
graph paper
D-rings
screwdriver
painter's tape

Skill Level: Beginner
Estimated Time: 1 day
Estimated Cost: $200

Gary Payne

Photo By: Gary Payne

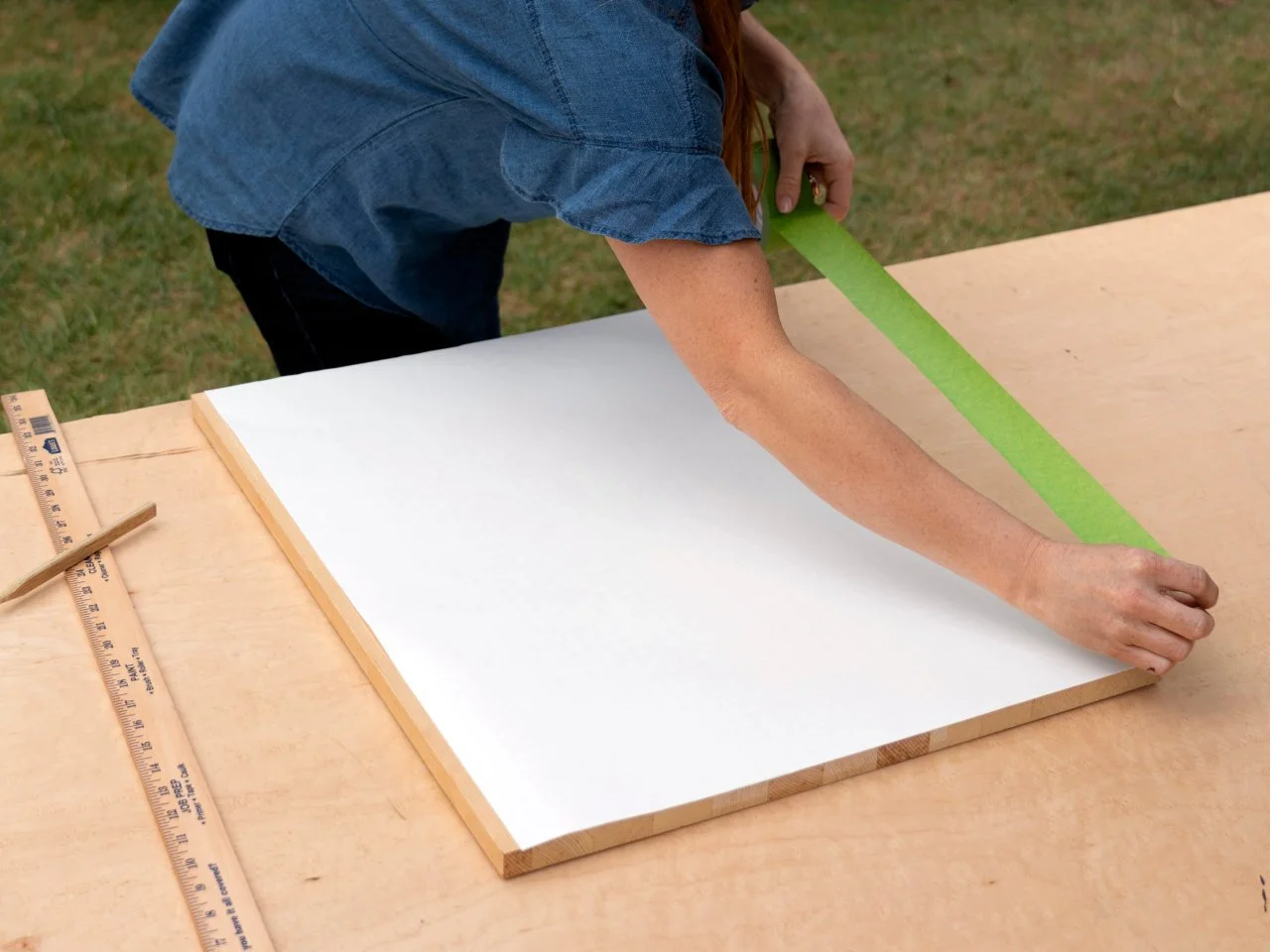

Step 1: Mark Pattern on Pegboard

We used a ready-made 1”-thick craft board but you could cut a piece of plywood to whatever size you wish. Tape a large piece of graph paper on the craft board to mark the pattern for the peg holes. Start by drawing lines on the graph paper to create a grid then mark for the holes every three inches, staggering them on every other line.

Gary Payne

Photo By: Gary Payne

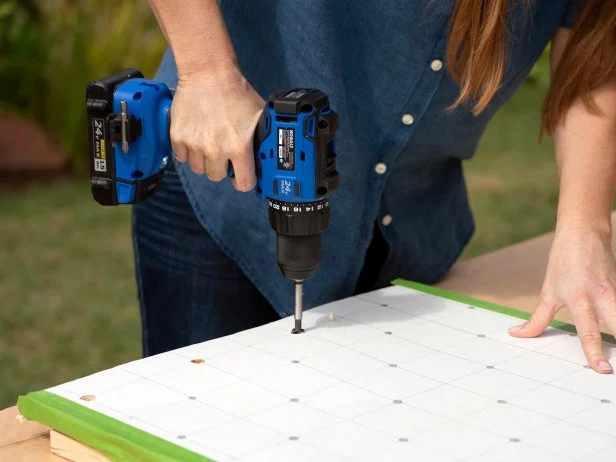

Step 2: Drill Holes

Use a forstner bit to drill the holes directly through the graph paper. Make sure your drill bit matches the size of the dowel. Keep the drill at 90° to ensure the holes will be straight. When drilling, use a backer board behind the pegboard to prevent blowout.

Gary Payne

Photo By: Gary Payne

Step 3: Paint Pegboard

Use spray primer on the pegboard then apply a coat of paint. Make sure you paint inside the holes too. We’re putting our shelf in the bathroom, so a good coat of primer and paint will help protect the natural wood in the moist environment.

Gary Payne

Photo By: Gary Payne

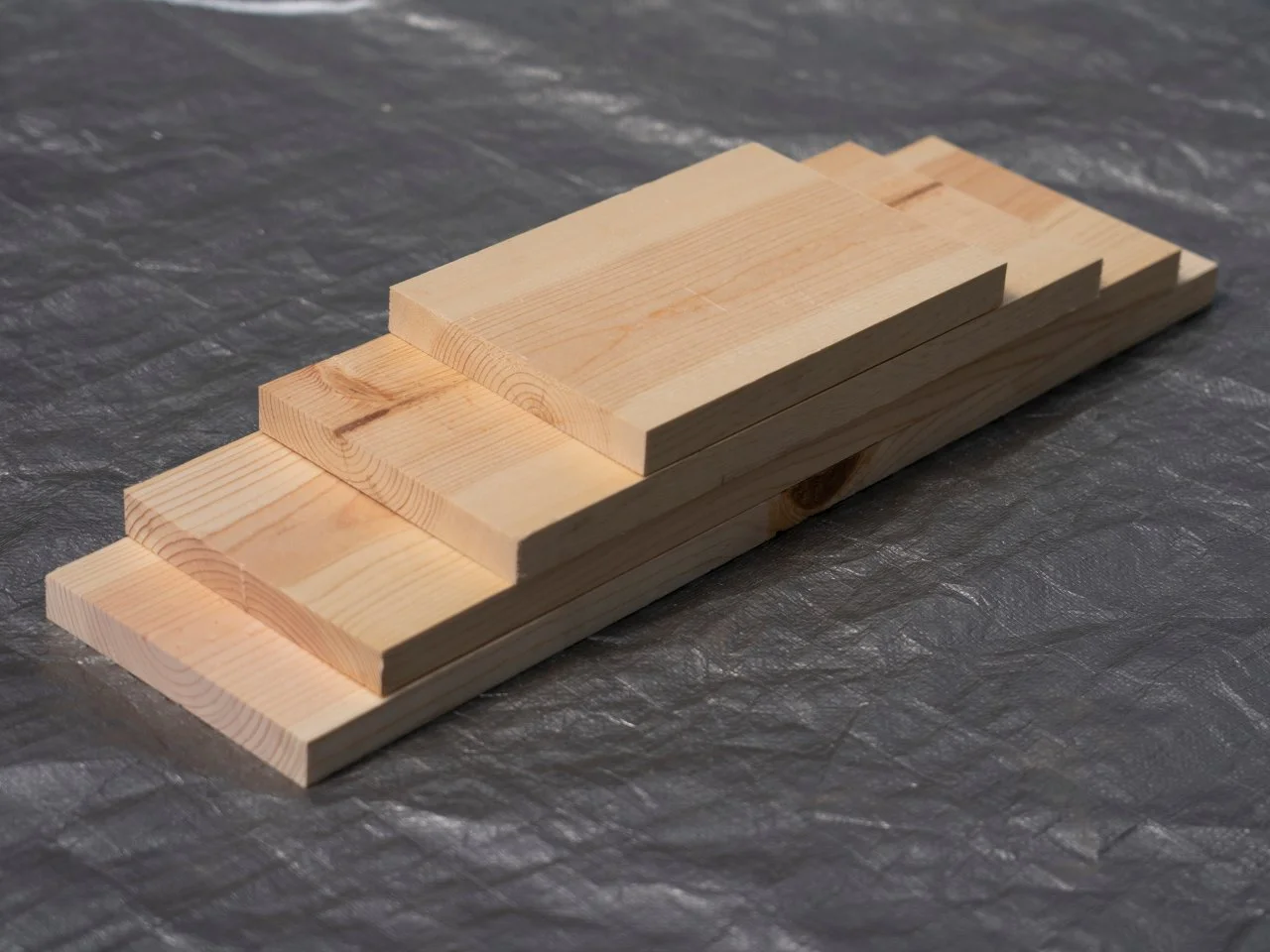

Step 4: Cut + Paint Shelves

Various shelf lengths will give you more design flexibility; we used four different sizes. Be sure to allow for a 1” to 1-1/2” overhang on either side of the pegs. Prime and paint the shelves.

Photo by: Gary Payne

Gary Payne

Step 5: Cut + Paint Pegs

The pegs should be cut to 6-1/2” long to be inserted completely into the holes and extend about 1/4” past the front edge of the shelf. Prime and paint the pegs.
