How to Build Sports Equipment Storage

Use the vertical corner space in your garage to store oddly-shaped items and sports equipment.

DIY Corner Storage
Loading Video...
By: Grace does

Materials Needed

  • chop saw
  • 1x1 x 6' board
  • plywood
  • drill
  • wood screws
  • tape measure
  • sanding block
  • bungee cords
  • nail gun
  • safety equipment

Measure Area

Measure the corner area you'd like to install the storage system. Our measurements are 12" x 14".

Measure and Cut Braces

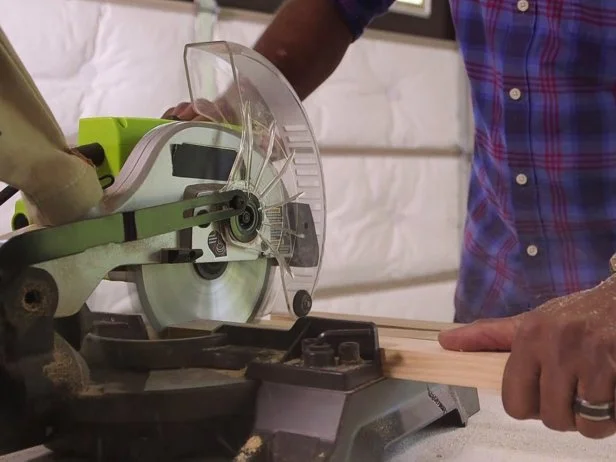

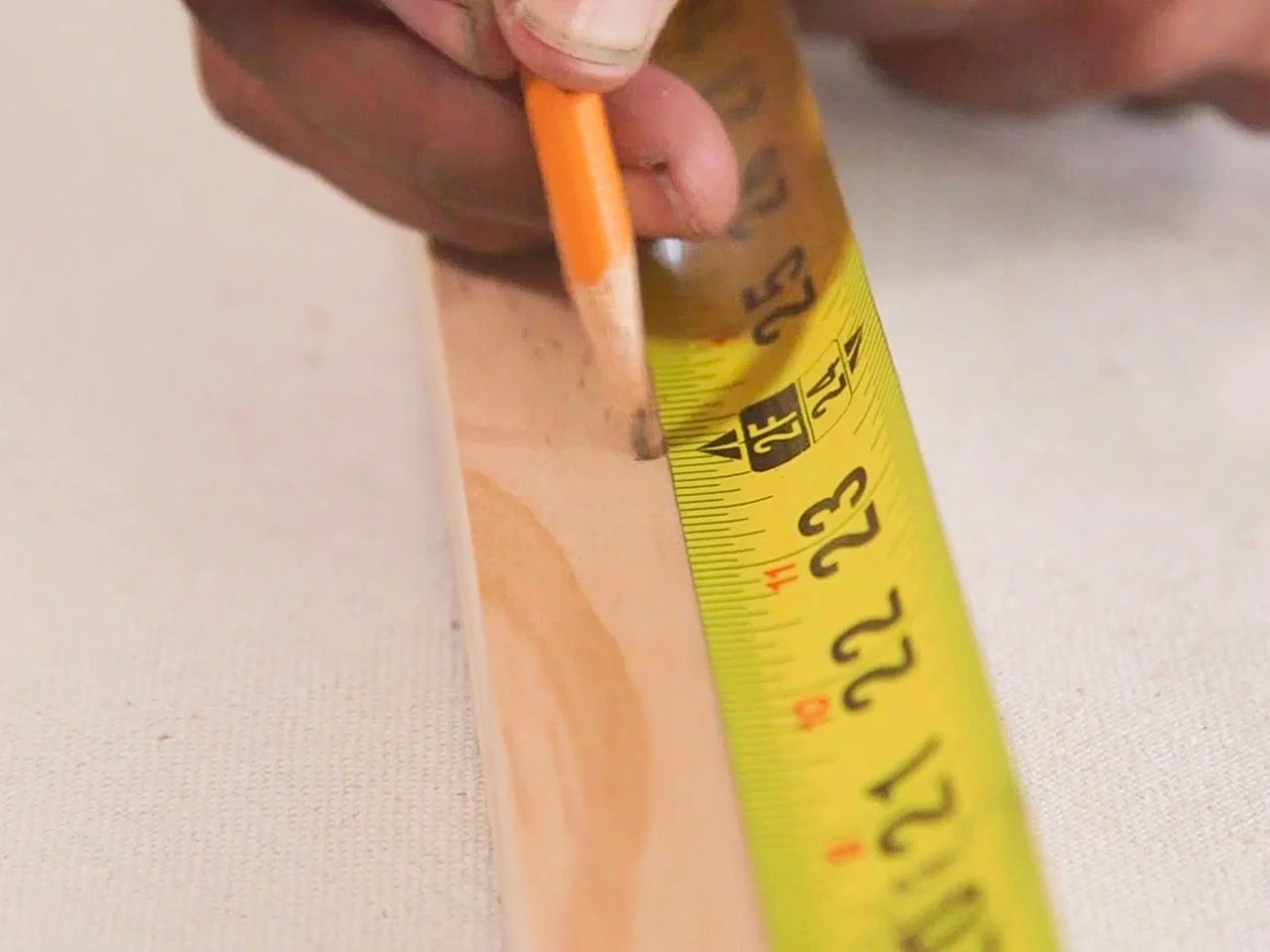

Cut the 1x1 board down to two 12" pieces and two 14” pieces for the braces.

Cut Plywood Pieces

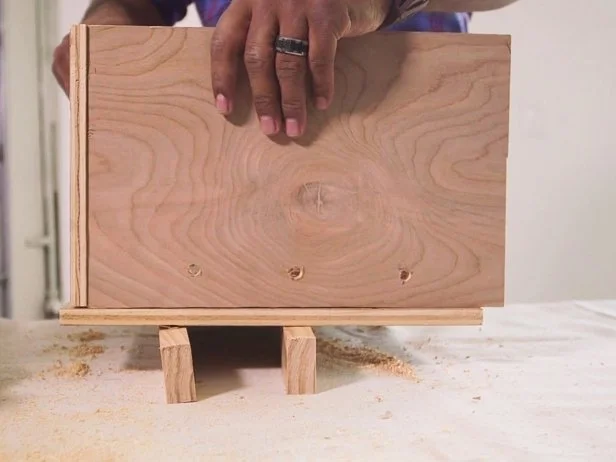

Cut four 12" x 14” plywood pieces for the top, bottom and side pieces. On one piece, drill holes for the bungee cords on two sides of the piece 3” apart (the bottom piece). On two pieces, drill holes 3" apart on one side of each piece (the side pieces). The two side pieces will attach to the top piece for additional storage. Smooth rough edges using a 120-grit sanding block.

Secure Braces

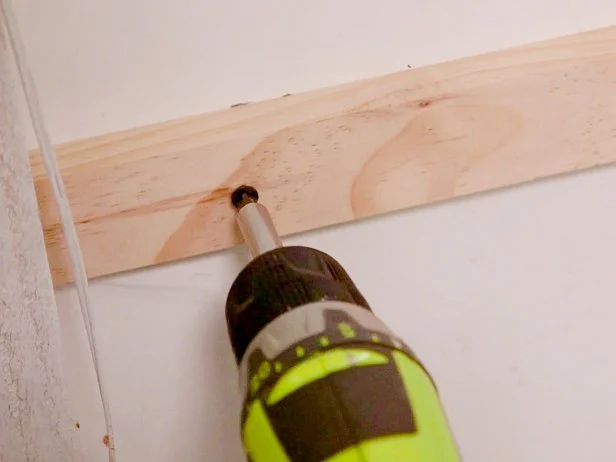

Secure one 12" brace and one 14" brace at the top of your storage area o the wall using wood screws and a drill, and repeat for the bottom braces, making sure to install the top and bottom far enough apart to keep bungee cords taut.

Attach Top and Bottom Pieces

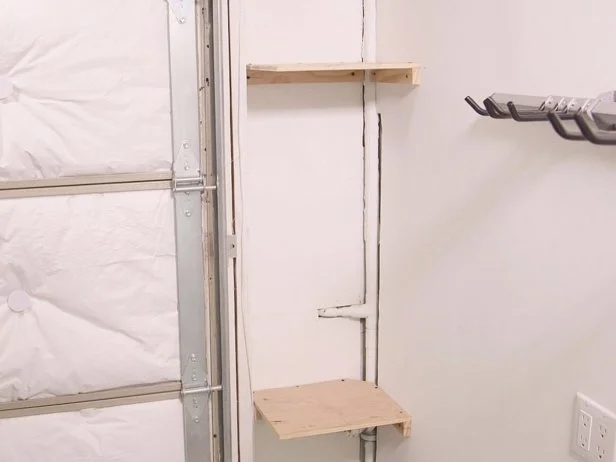

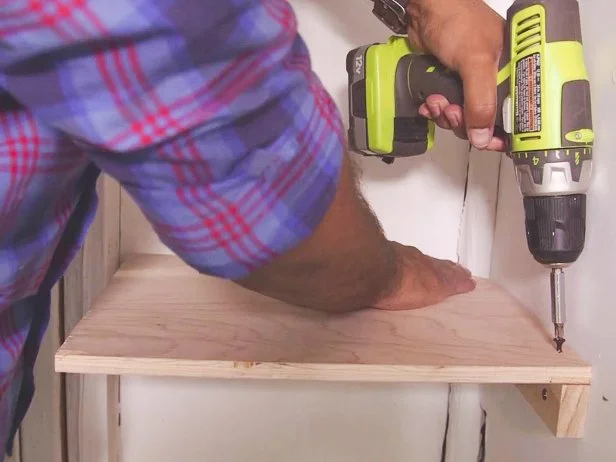

Attach the top and bottom pieces to the braces using wood screws and a drill.

Secure Side Pieces

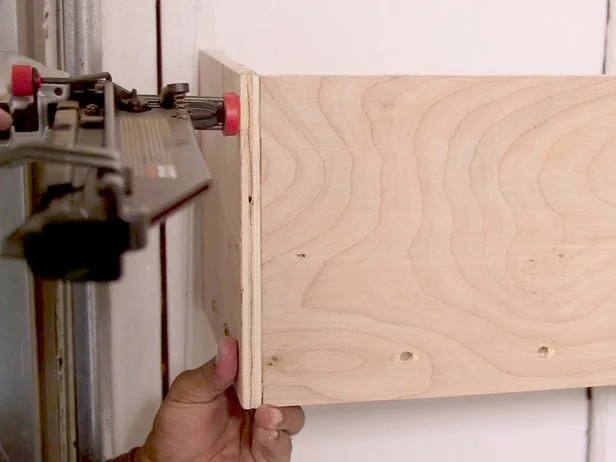

Secure the two side pieces to the top piece using a nail gun. Make sure the sides with the holes are lower than the top piece to allow room for the bungee cords to hook.

Attach Bungee Cords

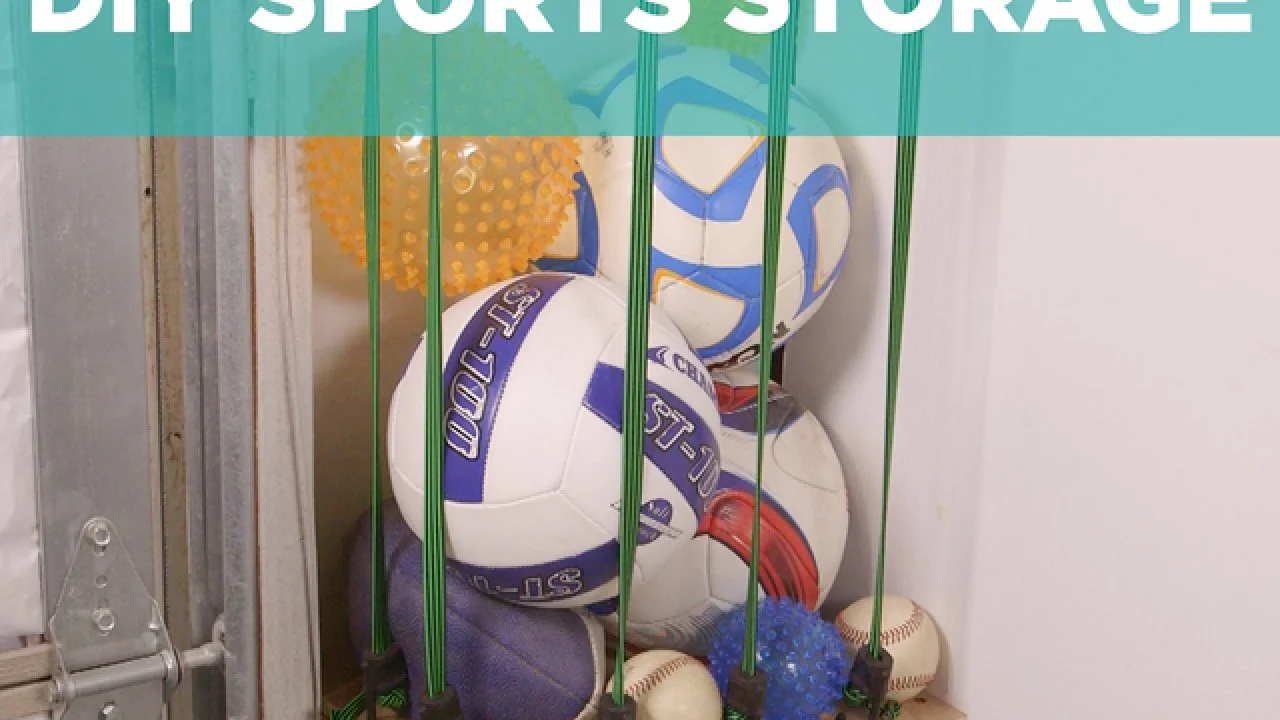

Hook bungee cords from top to bottom. Place sports equipment inside.
