Update Kitchen Cabinets With Glass Inserts

With these easy, step-by-step instructions, anyone can quickly and inexpensively transform builder-grade cabinet doors into beautiful, custom-looking glass insert doors.

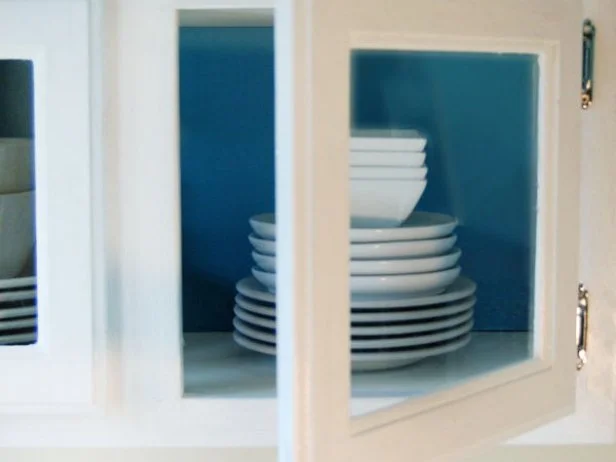

White cabinet doors with glass inserts, with blue interior.

Update Your Kitchen Cabinets With Glass Insert Doors

In its former life, this kitchen cabinet door featured a builder's grade, solid frame of light brown wood. Now transformed with glass inserts following a DIY project, the door presents a beautiful, customized look for the kitchen.

By: Ana White

Related To:

Materials Needed:

cabinet doors with panel insert
LEXAN glass sheets, 1/8" thick
utility knife or plastic cutting knife
clear silicone
Phillips screwdriver
measuring tape

carpenter's square or straightedge
circular saw
wood chisel
safety glasses
hearing protection
painters' tape

Remove Doors

Remove cabinet doors, place existing hardware in a plastic bag and label doors and cabinets openings with painters' tape, numbering them to make re-assembly easier. Note: This tutorial is for replacing cabinet door panels with LEXAN glass. The cabinet must be constructed with a frame surrounding a panel, like the cabinet in the diagram.

Kitchen cabinet diagram showing its groove

Installing Glass Inserts to Kitchen Cabinets: Remove Cabinets and a Diagram for Measuring

Step 1 in installing glass inserts to kitchen cabinets is to remove cabinet doors, placing existing hardware in a plastic bag. Then, label the doors and cabinet openings with painters' tape, numbering them to make re-assembly easier. Note: This tutorial diagram is for replacing cabinet door panels with LEXAN glass. The cabinet must be constructed with a frame surrounding a panel, like the cabinet in the diagram.

Measure Doors

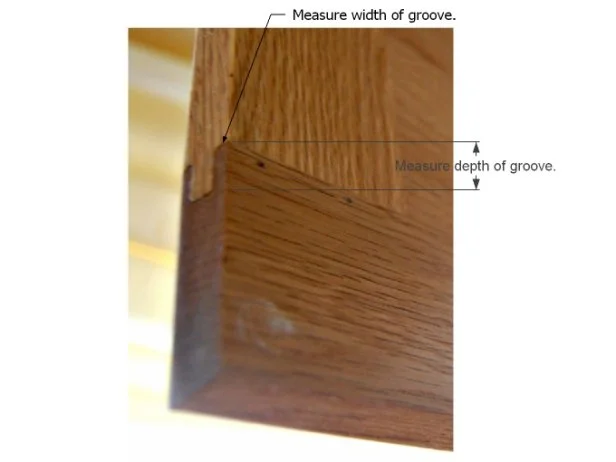

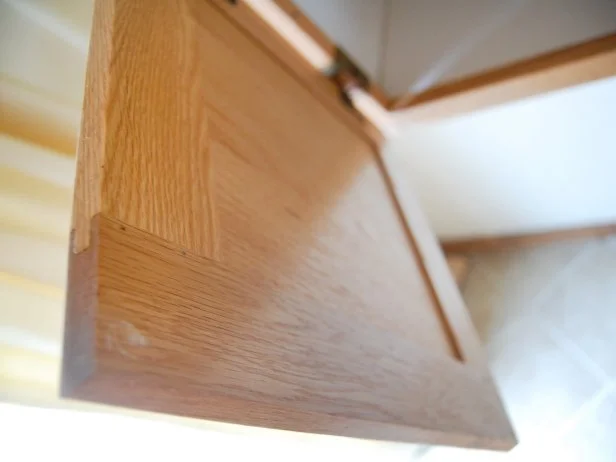

Remove doors from the cabinet and inspect top edge of the door. Each door will have a tongue-and-groove joint. First, measure width of groove on inside of cabinet then measure depth of groove on the cabinet. In example shown, depth of groove is 1/2-inch and width is 1/4-inch.

Kitchen cabinet showing its tongue and groove joint.

Installing Glass Inserts to Kitchen Cabinets: Measuring the Doors

Step 2 in installing glass inserts to existing paneled cabinets is to measure the doors. Remove the doors from the cabinet and inspect the top edge of the door. Each door will have a tongue-and-groove joint. First, measure width of groove on the inside of cabinet then measure its depth of groove. In example shown, the depth of groove is 1/2-inch and its width is 1/4-inch.

Mark Doors

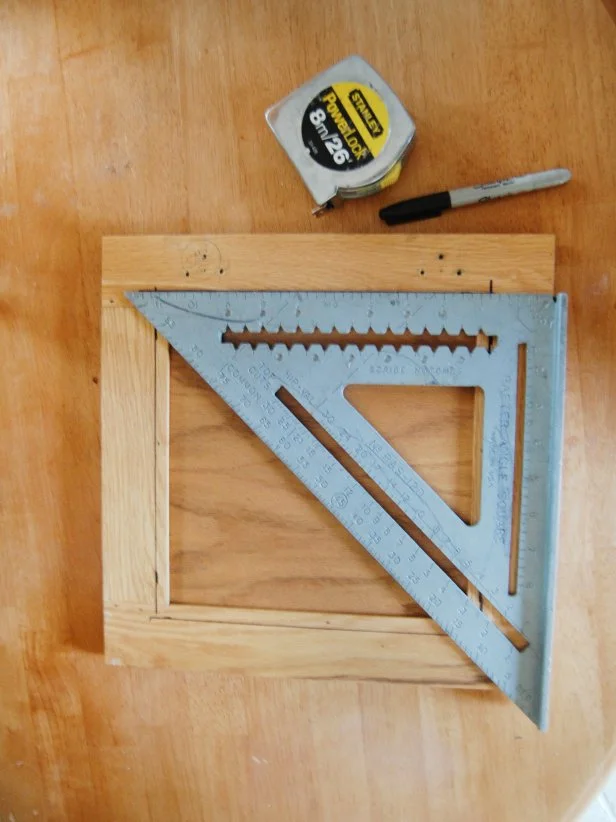

On back of cabinet, mark doors in from the inside of the frame the depth of the groove. Use carpenter's square to mark all sides.

Measuring the inside of a cabinets door for glass inserts.

Installing Glass Inserts to Kitchen Cabinets: Mark the Cabinet Doors

Step 3 in installing glass inserts to existing paneled kitchen cabinets is to mark the doors. On the back of the cabinets, mark the doors from the inside of the frame the depth of the groove. Use a carpenter's square to mark all the sides.

Cut Out Panels

Adjust circular saw cutting depth to depth taken in previous step. With eye and hearing protection, carefully cut marked lines with circular saw. Tip: Use a clamp to secure the door to the work surface.

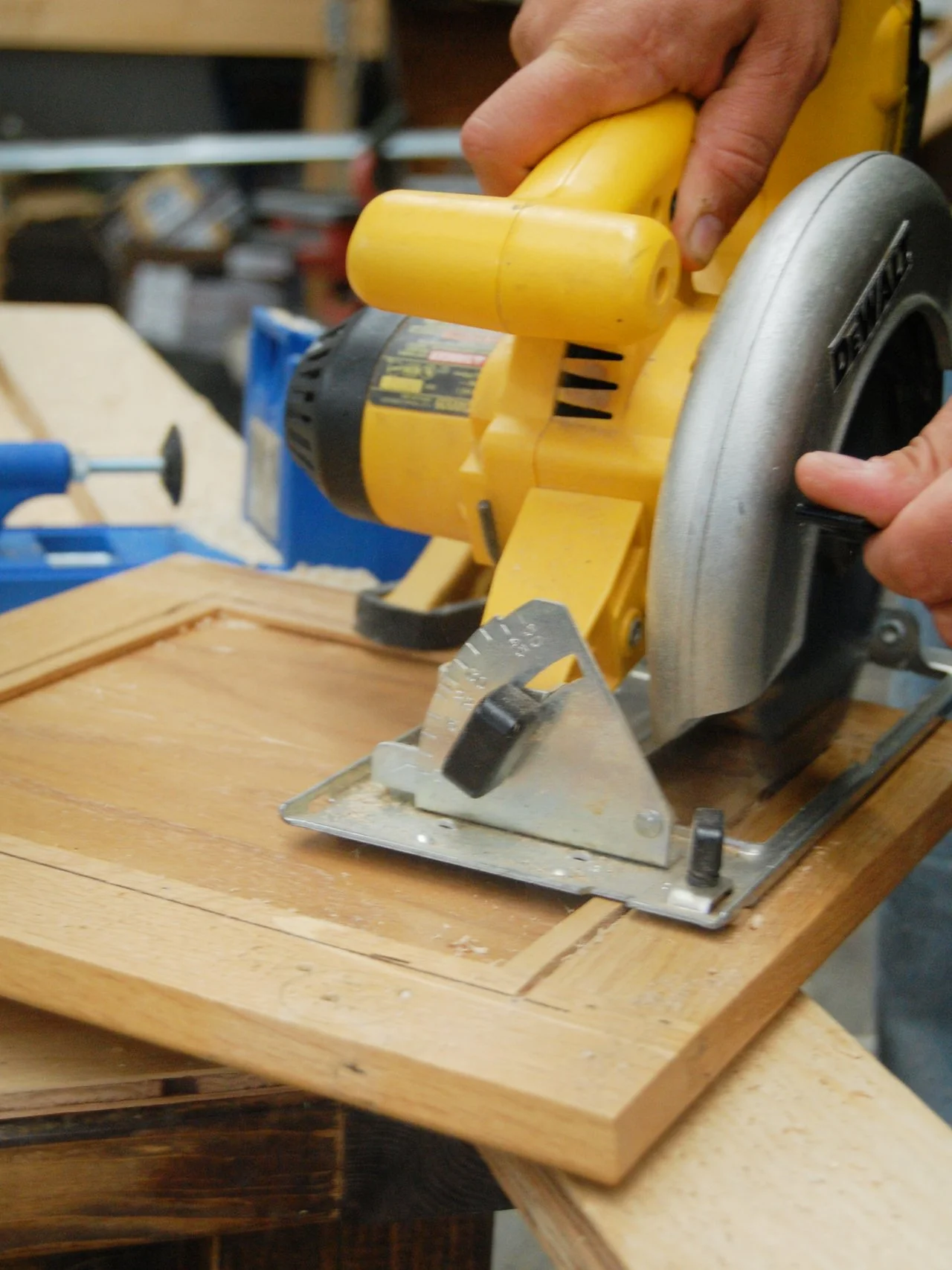

Cutting kitchen cabinet doors for glass inserts.

Installing Glass Inserts to Kitchen Cabinets: Cut Out Panels

Step 4 in installing glass inserts to existing paneled cabinets is to cut out the panels for the glass. Adjust the circular saw cutting depth to the depth taken in previous step. With eye and hearing protection, carefully cut marked lines with the circular saw. Tip: Use a clamp to secure the door to the work surface.

Chisel Corners

Use a wood chisel to cut corners free.

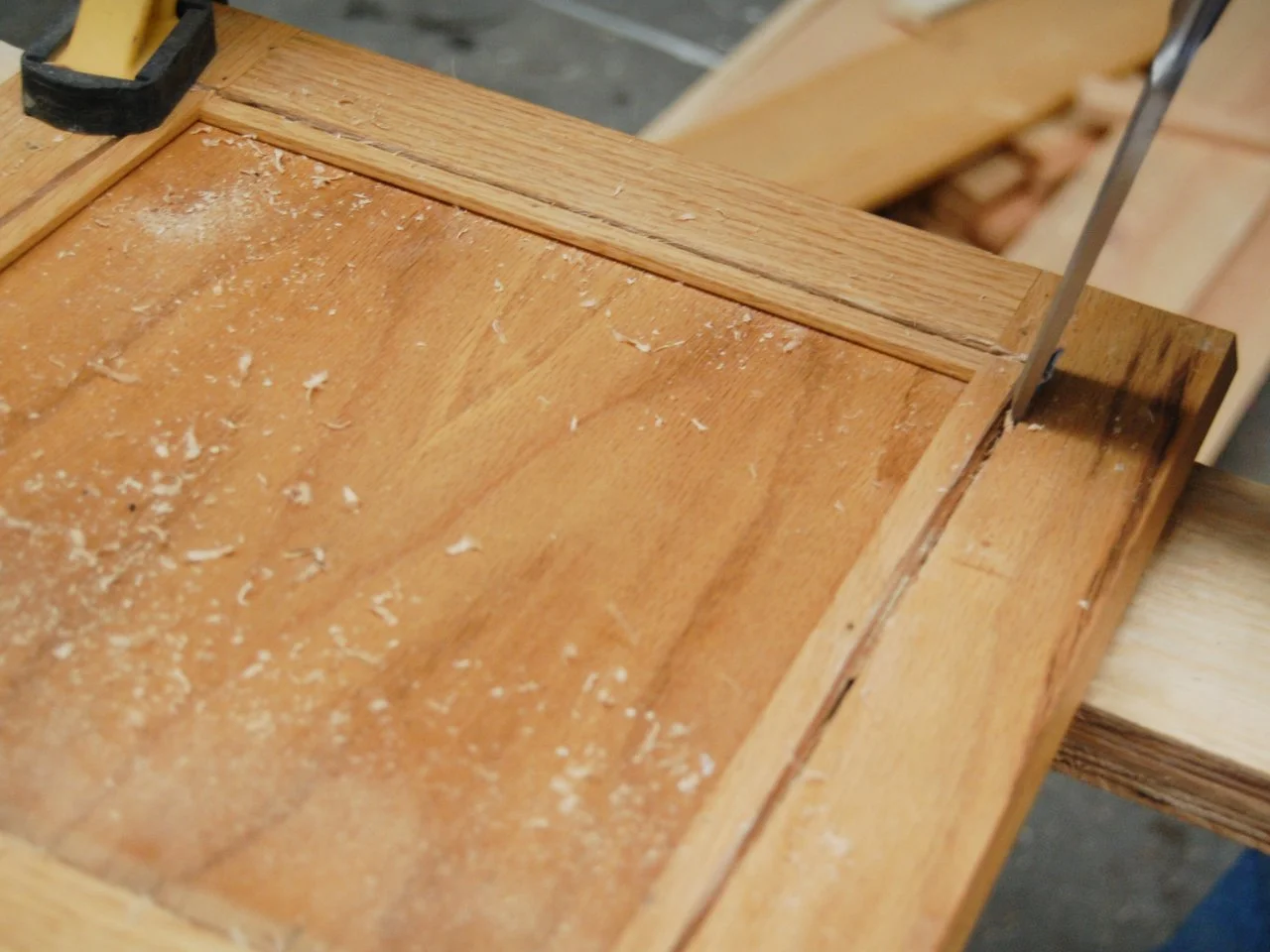

Chiseling wood free from a cut cabinet door frame.

Installing Glass Inserts to Kitchen Cabinets: Chisel Cut Corners Free

After cutting the marked lines of the cabinet with a circular saw, Step 5 in inserting glass panels to existing paneled cabinets is to chisel to cut corners free. Use a wood chisel for this step.

Remove Wood Panel

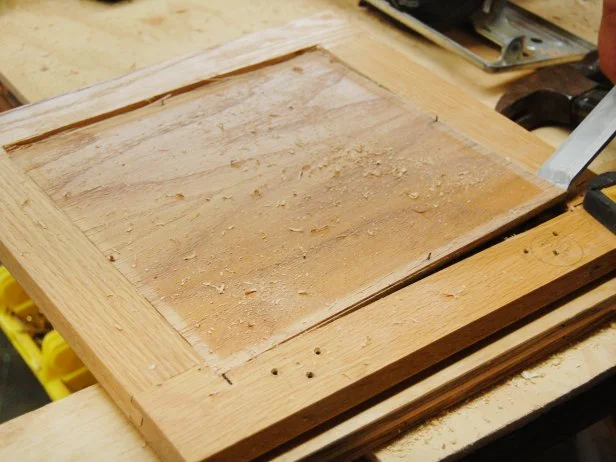

With the wood chisel, pry wood panel free of cabinet frame. Remove panel and measure dimensions.

Prying a wood panel from a kitchen cabinet frame with a chisel.

Installing Glass Inserts to Kitchen Cabinets: Removing the Wood Panel

Step 6 in installing glass inserts to existing paneled cabinets is to remove the wood panel. With a wood chisel, pry the wood panel free of the cabinet frame. Remove the panel and measure its dimensions.

Cut LEXAN Glass

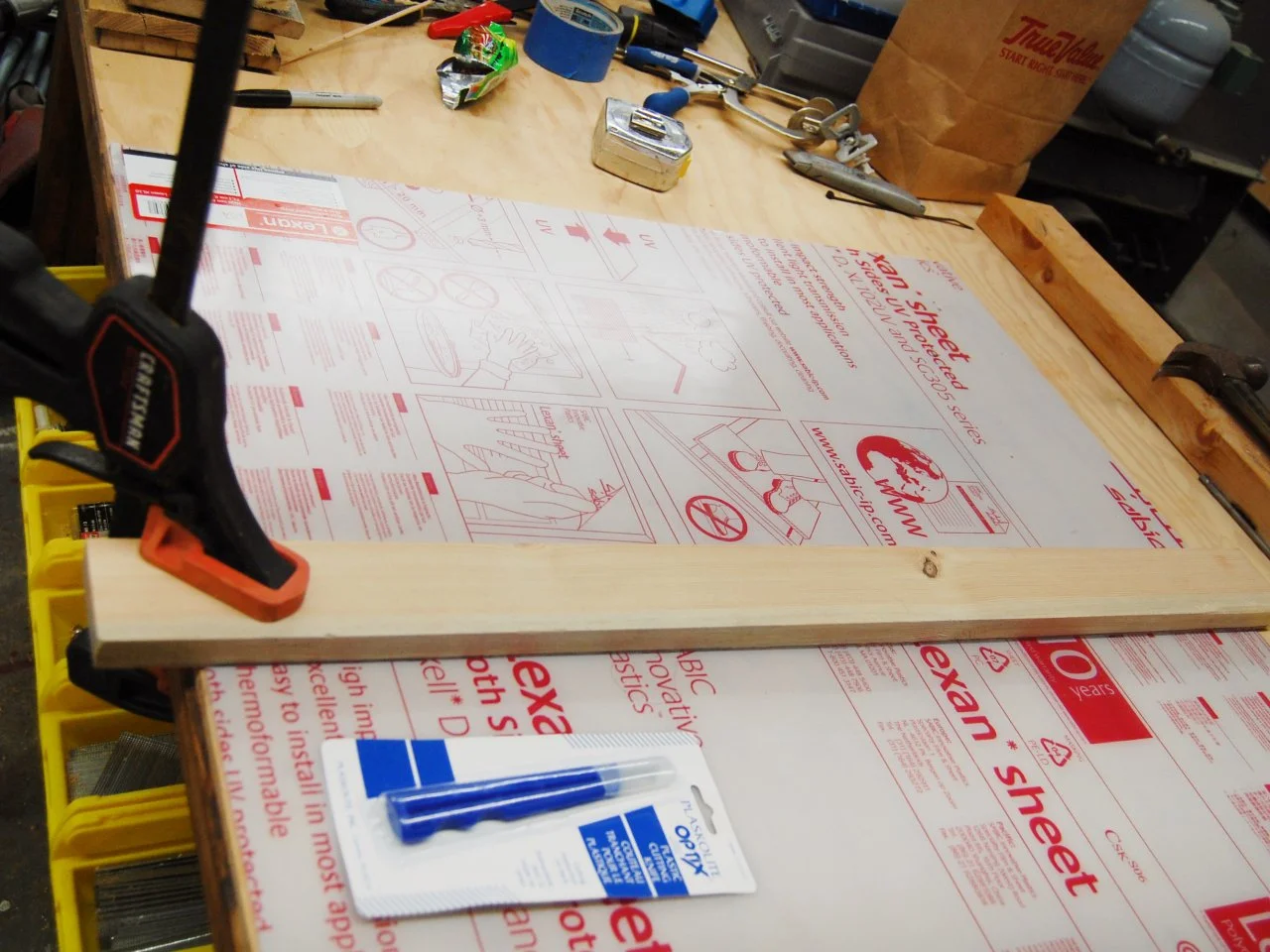

Mark dimensions of plywood insert on LEXAN glass. Using plastic cutting knife or utility knife, score LEXAN glass halfway through then snap LEXAN glass on scored lines. Tip: Clamp a straight board to the LEXAN glass and use as a scoring edge.

Cutting LEXAN glass, using plywood dimensions, for cabinet inserts.

Installing Glass Inserts to Kitchen Cabinets: Cut LEXAN Glass

Step 7 in installing glass inserts to existing paneled cabinets is to cut LEXAN glass. Mark the dimensions of the plywood insert on the LEXAN glass. Using a plastic cutting knife or utility knife, score the LEXAN glass halfway through, then snap the LEXAN glass on scored lines. Tip: Clamp a straight board to the LEXAN glass and use it as a scoring edge.

Apply Silicone

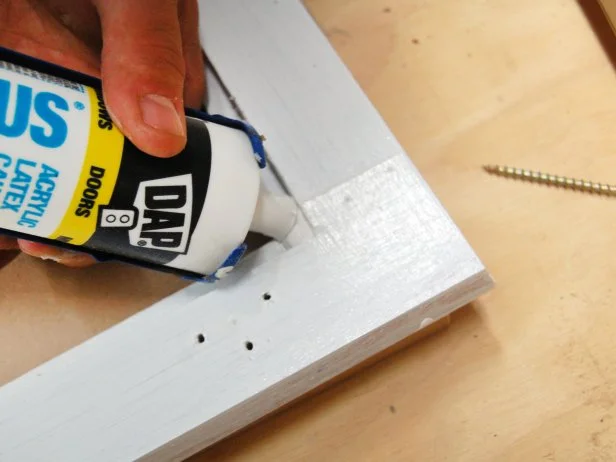

Apply clear silicone to interior door frame. Note: The cabinet was first painted white, this is an optional step.

Applying clear glass silicone to a cut-out cabinet door frame.

Installing Glass Inserts to Kitchen Cabinets: Apply Silicone

Step 8 in installing glass inserts to existing paneled cabinets is to apply clear silicone to the interior door frame. Note: The cabinet was first painted white; this is an optional step.

Insert LEXAN Glass

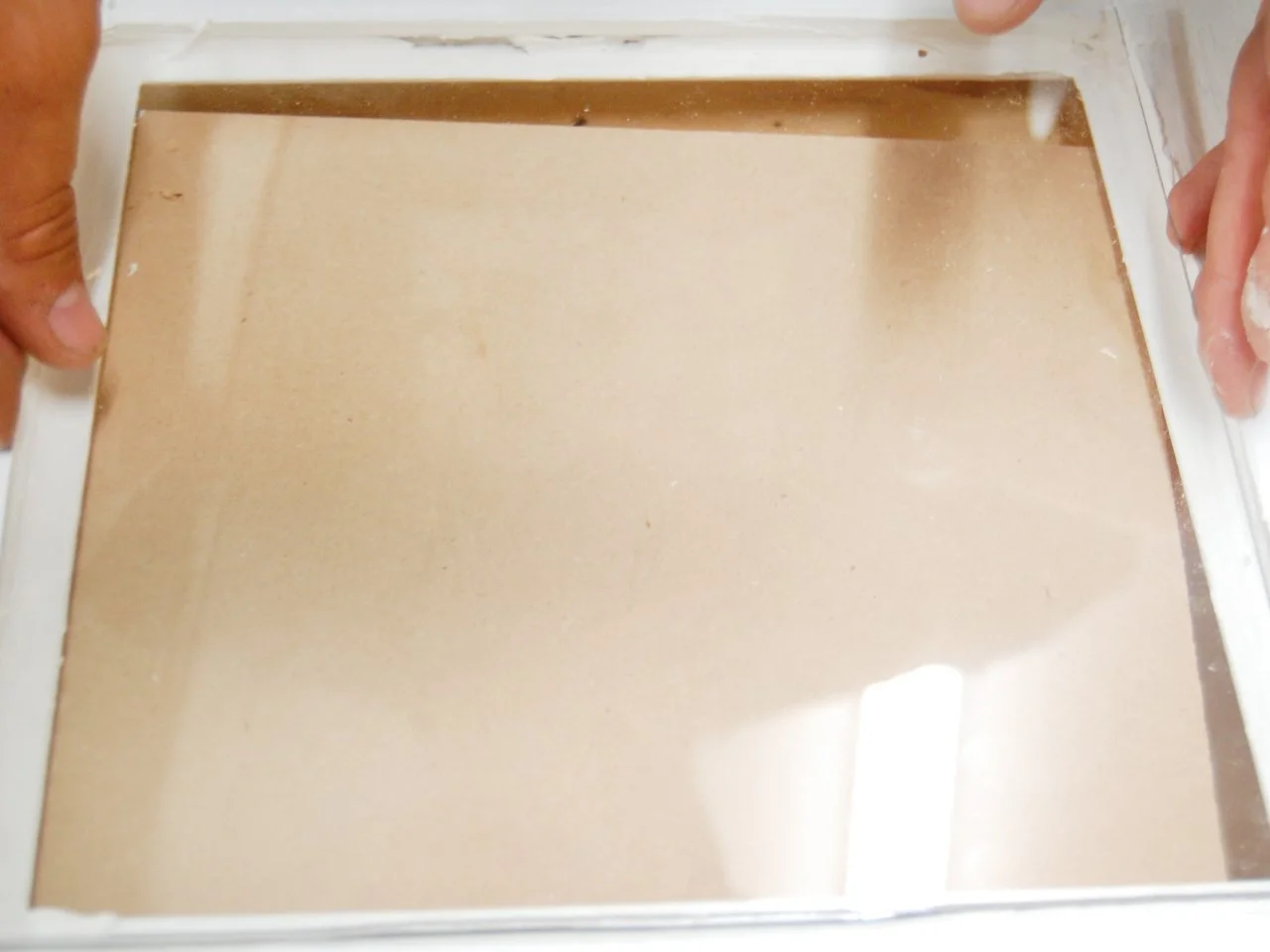

Carefully insert LEXAN glass into frame, pressing glass firmly into frame. Wipe excess silicone off face of glass and allow to dry. Hang cabinet doors using hardware removed in the first step.

Inserting LEXAN glass into a kitchen cabinet frame.

Installing Inserts to Kitchen Cabinets: Inserting the Glass

Step 9 in installing glass inserts to existing paneled cabinets is to insert the glass. Carefully insert LEXAN glass into frame, pressing the glass firmly into the frame. Wipe any excess silicone off the face of the glass and allow the silicone to dry. Hang the cabinet doors using the hardware removed in the first step of the process.
