How to Install Tile Flooring

The experts show how to remove old carpet and replace it with a tile floor.

DIY-1979560_dtrs208_1fp

Materials and Tools:

rubbing stone
backer board
fiberglass mesh tape
thin-set mortar
grout
grout sealant
caulk
utility knife
scraper
pry bar
wrench
wet saw
tile nippers
level
framing square
chalk line
broom
notched trowel
lint-free towels
grout float

Steps:

DIY-1979546_dtrs208_1fb

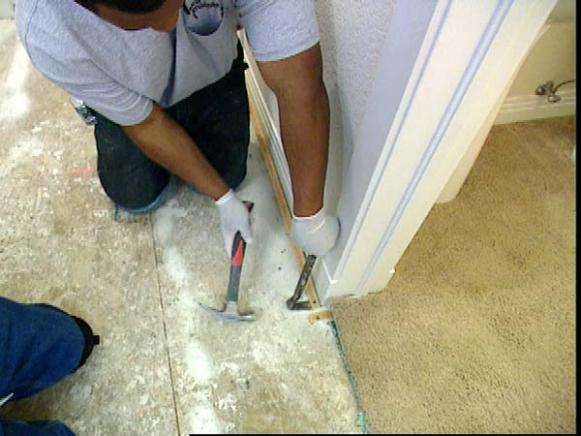

1. Cut through the existing carpet with a utility knife to reveal the plywood subfloor below. To prepare the subfloor for underlayment, pull up the carpet pad and pry up all the tack strips. It's important to start with a smooth surface, so pull out any remaining staples and vacuum all the debris.

DIY-1979547_dtrs208_1fc

2. With the sub-floor in good shape, begin setting the underlayment. Underlayment, or backer board, provides a good foundation for the tile. Without it, tiles can crack as the house settles and shifts over time. In order to fit the backer board into each nook and cranny, cut the 4' x 4' boards down to size using a utility knife.

DIY-1979548_dtrs208_1fd

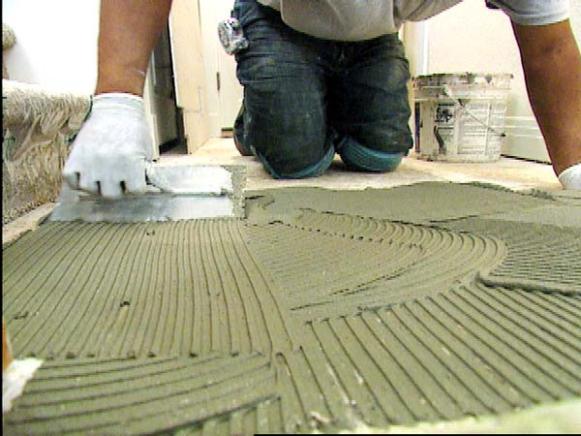

3. After carefully measuring the areas, transfer the measurements to each piece. Once the pieces are cut and dry fit, trowel a layer of mortar, or thinset, on the subfloor. Screw down each piece. Allow for the thinset to dry.


DIY-1979549_dtrs208_1fe

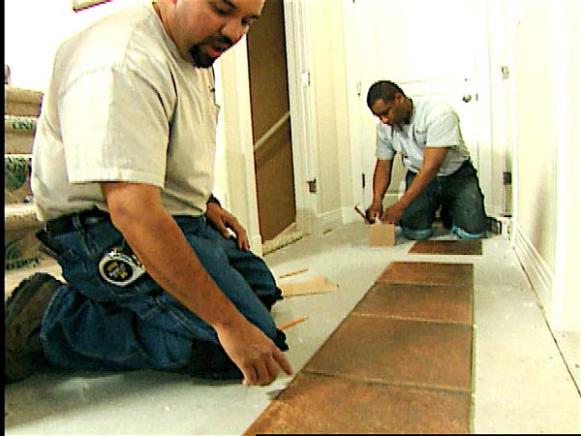

4. To prevent a lop-sided looking floor, create a layout that maintains a visual balance. Lay a row of tiles as a reference, and create a grid with a chalk line and a framing square.




DIY-1979551_dtrs208_1fg

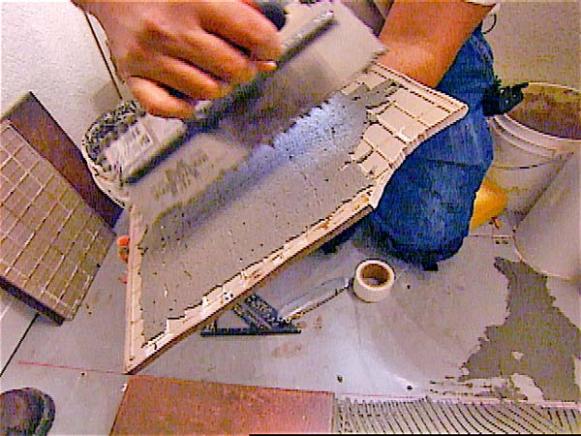

5. To install the tiles, trowel an even layer of thinset on the underlayment, and back butter the tile for better coverage.





DIY-1979552_dtrs208_1fh

6. Once the tile is set, use a level to make sure the tile is flat and even. Place spacers between each corner.





DIY-1979553_dtrs208_1fi

7. For tiles that run adjacent to the wall or around corners, carefully measure the space, and use a diamond blade wet saw to cut each tile to size.




8. For tough cuts around the sink or sewer opening, transfer a group of measurements to low tack tape on the tile. Using tape gives an exact line to follow, so there's less room for error.

DIY-1979555_dtrs208_1fk

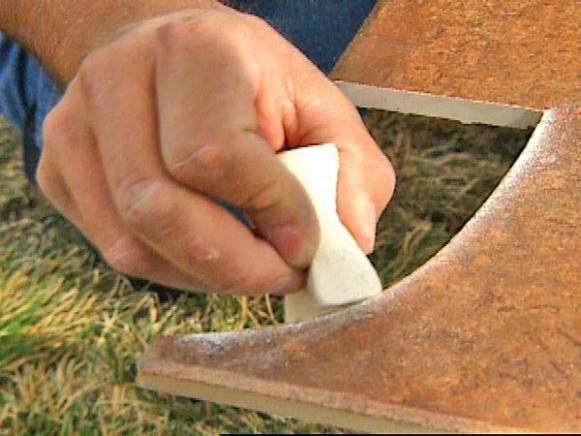

9. With the measurements plotted out, you can map out a precise curve. Use the saw to make the initial cut, and refine the edge with a grinder and a rubbing stone.




DIY-1979556_dtrs208_1fl

10. If the grout joints are 1/8" or larger, use a sanded grout for strength. As the house settles and shifts, the grout acts as another buffer so the tiles don't crack over time. Clean the tile surface, and use a rubber grout float to pack the grout in all the joints.


DIY-1979558_dtrs208_1fn

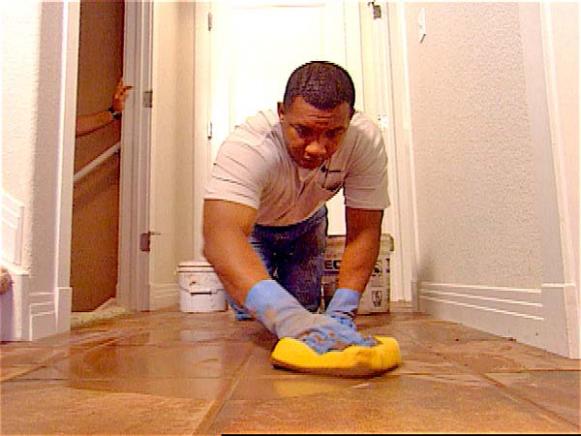

Once you fill all the joints, use a wet sponge to clean off the excess grout. Wipe the joint while using a 45-degree angle to not remove the grout from between the tiles.




DIY-1979559_dtrs208_1fo

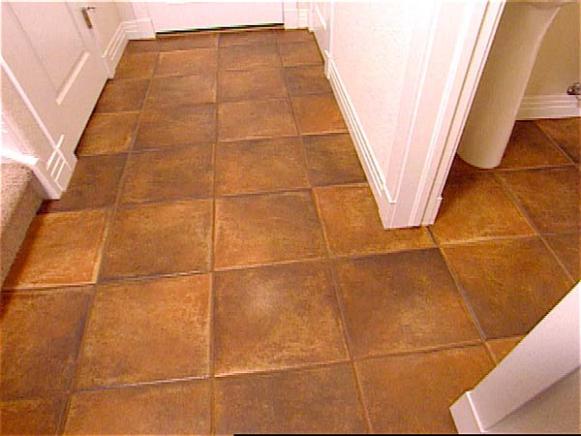

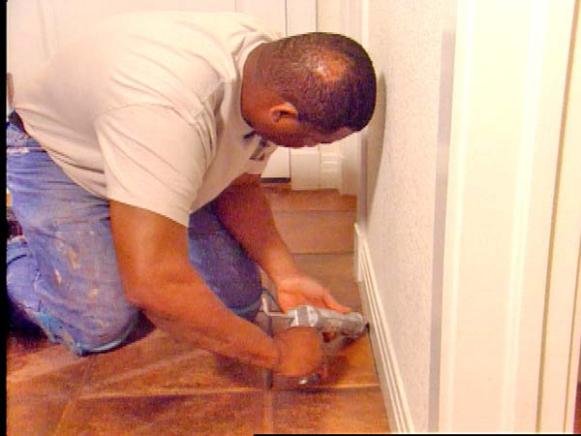

11. Once the grout dries, caulk around the edges of any sinks or other items, as well as along the walls. Clean and buff the tiles to complete the project.
