How to Build a Drawer Organizer
Organize your dresser with easy-to-build drawers with inserts.
Drawer Organizer
Organize dresser drawers with easy-to-make wood inserts.
Photo by: Wade Works Creative
Wade Works Creative
Materials and Tools
- 2" x 4" acrylic sheet, 1/8" thick
- 6" x 10' cedar board, 1/2" thick
- (1) can lacquer spray paint
- chop saw
- circular or table saw
- router
- trim nail gun
- 1/2" straight router bit
- wood glue
Cut List
-Piece A - (2) cedar board pieces width of drawer minus 1/8"
-Piece B - (2) cedar board pieces depth of drawer minus 7/8"
-Piece C - (1) cedar board pieces length of Piece A minus 3/4"
-Piece D - (8) acrylic sheets: Length — distance from inside slot to inside slot of partition; Height — 1" less than interior height of drawer
Cut Cedar Pieces

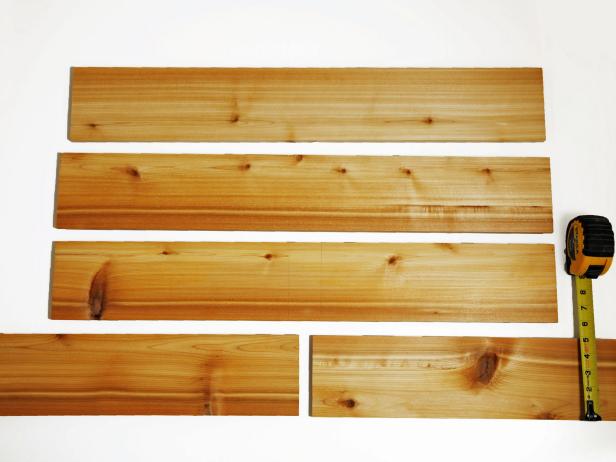

Cut all cedar boards to 5" wide or the height of the interior dimensions of the drawer (Image 1). Cut two (Piece A) sections, two (Piece B) sections and a (Piece C) section, according to the cut list dimensions (Image 2).
Wade Works Creative
Wade Works Creative
Drawer Organizer
Cut all cedar boards to 5" wide or the height of your interior dimensions of the drawer.
Photo By: Wade Works Creative
Drawer Organizer
Cut all cedar boards to 5" wide or the height of your interior dimensions of the drawer.
Photo By: Wade Works Creative
Cut Slots

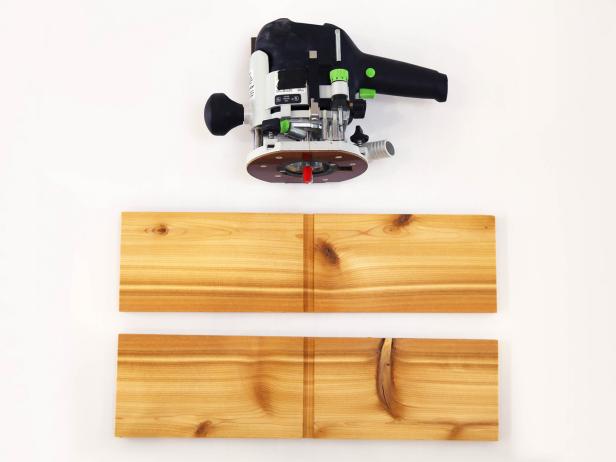

Cut 1/8" deep slots in the center of (Piece B) sections using a 1/2" straight router bit (Image 1). Using the same bit, notch a slot flush on either end of each (Piece A) at 1/8" deep (Image 2).
Wade Works Creative
Wade Works Creative
Drawer Organizer
Cut 1/8" deep slots in the center of both B pieces using a 1/2" diameter straight cut router bit.
Photo By: Wade Works Creative
Drawer Organizer
Notch a slot flush on either end of each A piece at 1/8" deep using a 1/2" diameter straight cut router bit.
Photo By: Wade Works Creative
Mark for Dividers
Mark two 1" thick center lines down the length of the boards on the inside of (Piece A) sections and both sides of (Piece C) for the acrylic dividers. Ensure lines on all boards align.
Drawer Organizer
Create 2" center lines, and mark down the length of the boards where acrylic dividers will be on the inside of A pieces and both sides of C pieces. Ensure lines on all boards align.
Photo by: Wade Works Creative
Wade Works Creative
Cut for Dividers
Cut 1/8" wide (width of the saw blade) slots on each center line mark at 3/16" deep using the depth stop on the chop saw and a backer board.
Drawer Organizer
Cut 1/8" wide (width of saw blade) slits on each center line mark at 3/16" deep using the depth stop on the chop saw and a backer board.
Photo by: Wade Works Creative
Wade Works Creative
Attach Joints
Glue and nail all joints together.
Cut Acrylic
Cut eight (Piece D) acrylic sections according to the cut list with a table saw.

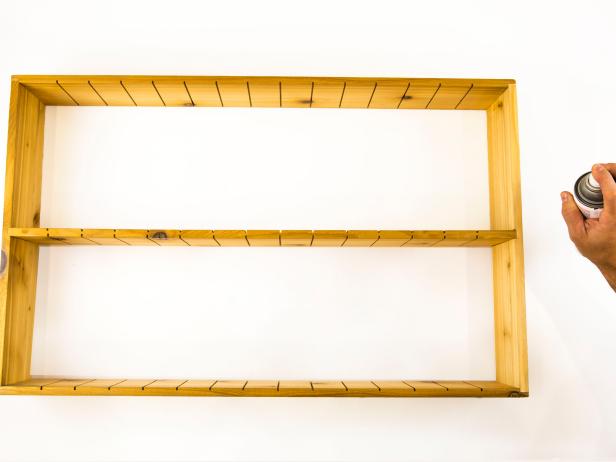

Apply Lacquer
Spray two coats of lacquer to the cedar frame, and let dry.
Drawer Organizer
Add a clear coating to cedar frame with two coats of spray lacquer.
Photo by: Wade Works Creative
Wade Works Creative
Insert Acrylic Dividers

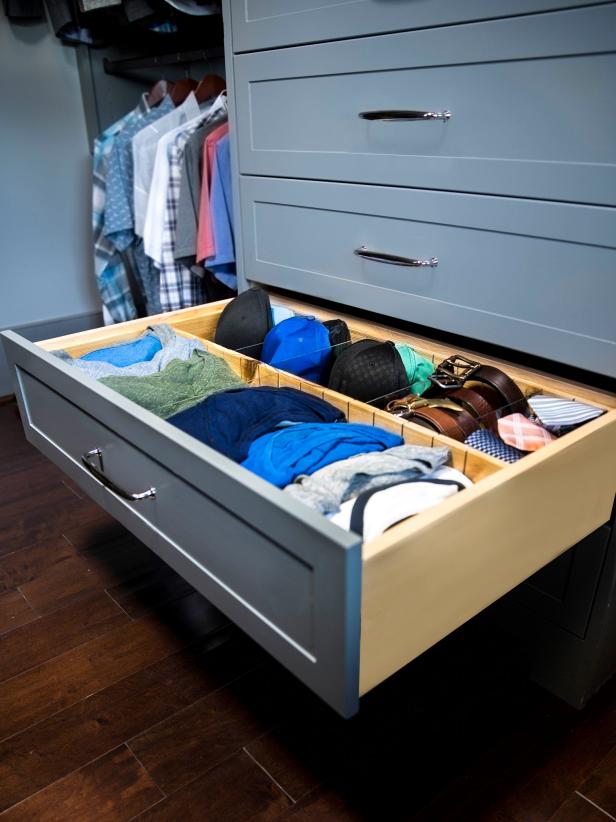

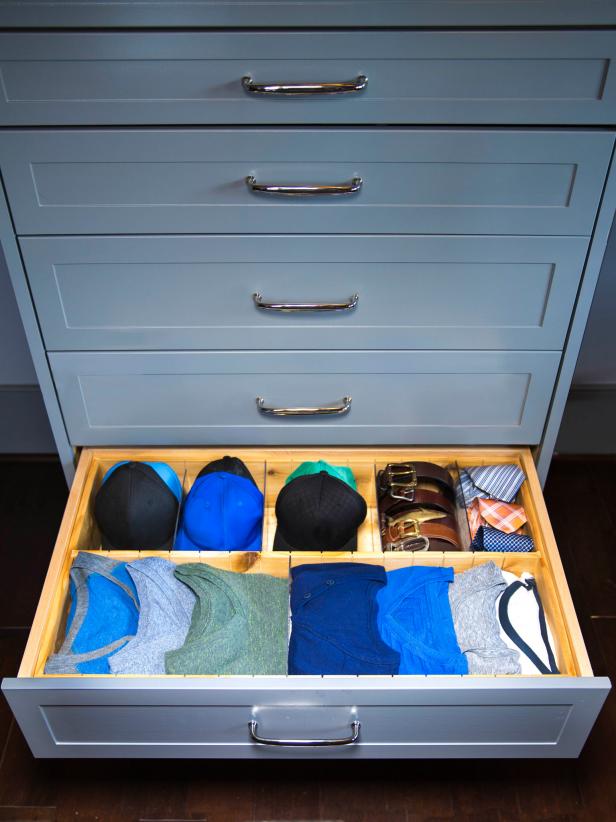

Place acrylic dividers in frame (Image 1), and insert final frame into dresser (Image 2).
