Pine and Plumbing Supply Shelving System

Add industrial-chic open storage to a space with plumbing supplies and basic lumber.
Eclectic Green Kitchen With Pine and Pipe Shelves

Eclectic Green Kitchen With Pine and Pipe Shelves

We absolutely the eclectic custom creations from Brian Patrick Flynn like this bespoke storage unit.

Materials Needed:

  • threaded galvanized metal pipe
  • threaded galvanized metal flanges
  • threaded nipples
  • threaded galvanized metal elbows
  • wood screws
  • drywall screws
  • drill
  • stud finder
  • 1x10 pine planks
  • circular saw
  • degreaser
  • damp cloth
  • pencil
  • wood stain and sealer
  • paintbrush or stain pad
  • tape measure
  • wood filler
  • spackle knife
  • electric sander
  • sanding pads
  • sanding block

Measure Wall

Using a tape measure, determine the available height and width of the wall along which to install the shelving. Take into consideration the placement of outlets and switches that require easy access.

Locate Studs

In order to secure the shelving to the wall properly, use a stud finder to locate studs. Use a pencil to mark stud placement.

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP2_s4x3

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP2_s4x3

Determine Height and Width of Shelving Boxes

Before building the shelving boxes, first decide what they’ll be used to store. Take into consideration the heights and widths of objects, containers and organizers that will be housed in the boxes.

Build Shelving Boxes

Referring to wall measurements and desired height and width for shelving boxes, mark pine planks with a pencil, cut them to size with a circular saw, then attach pieces together with wood screws, using a drill.

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP4_s4x3

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP4_s4x3

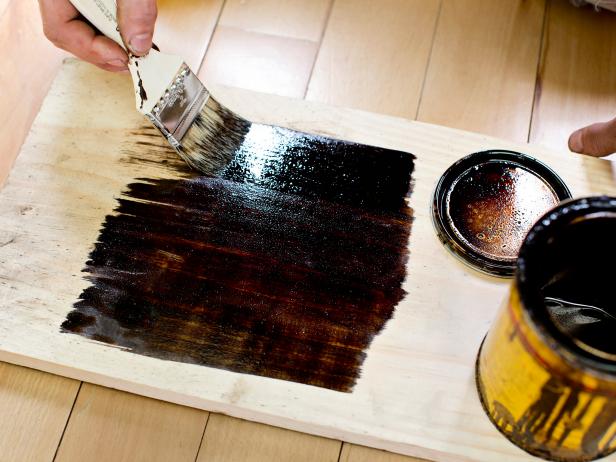

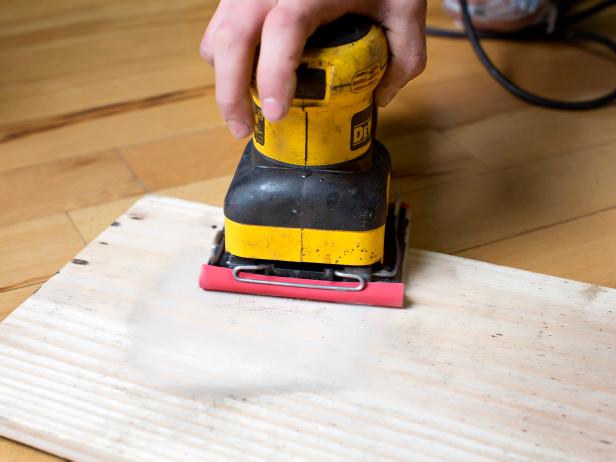

Sand and Stain Shelving Boxes

Using an electric sander and sanding pads or sanding block, lightly sand the surface of the pine shelving boxes. Wipe dust away with a damp cloth, then add stain using a stain pad or paintbrush.

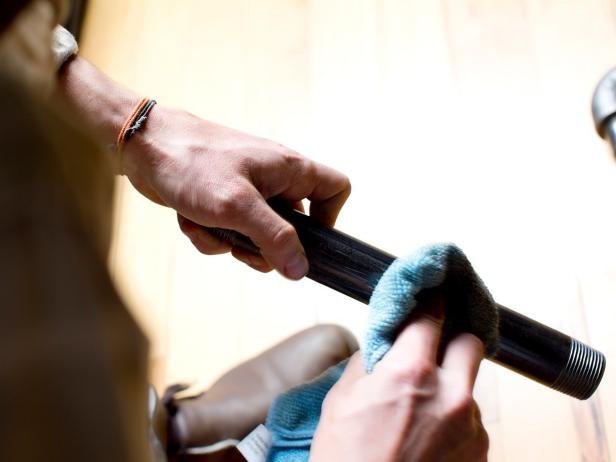

Degrease Plumbing Supplies

With degreaser and a damp cloth, remove grease from pipe, threaded nipples, flanges and elbows.

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP6_s4x3

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP6_s4x3

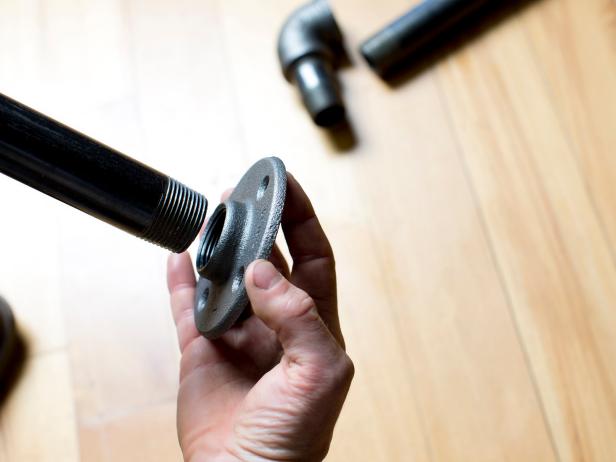

Add Threaded Pipe to Flange

To create the legs for each shelving box, connect threaded pipes to flanges. Next, attach pipe and flanges to the bottoms of each shelving box with wood screws, using a drill.

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP7_s4x3

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP7_s4x3

Stack Shelving Boxes

Stack shelving boxes on top of one another, ensuring that each is in the proper place and that the pipes and flanges line up perfectly.

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP8_s4x3

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP8_s4x3

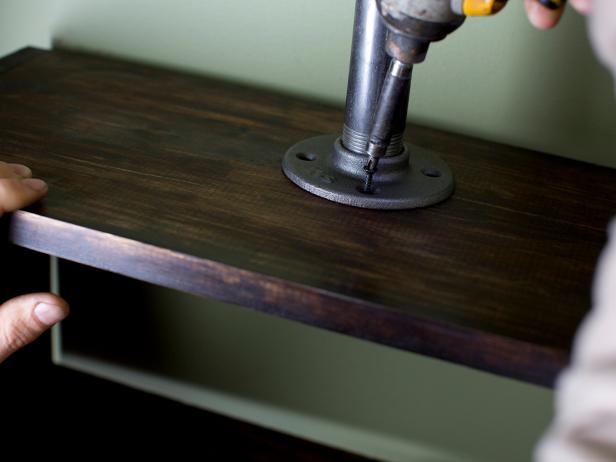

Attach Shelving Boxes

Once in place, attach shelving boxes to one another from below by drilling wood screws up through holes of flanges.

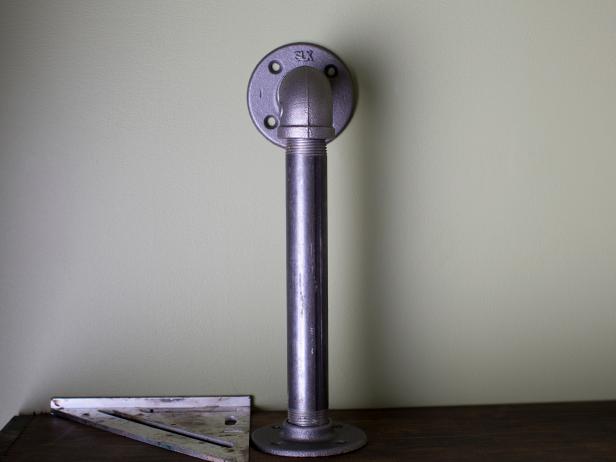

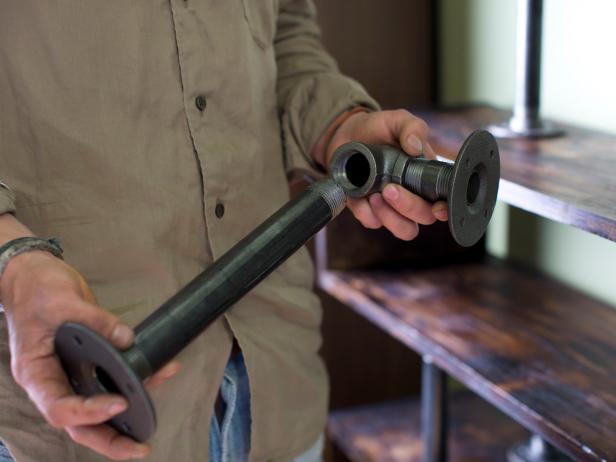

Create a Wall-Mounted Stabilizer

To add stability from the top, create a stabilizer by connecting a 12-inch threaded pipe to a 6-inch threaded pipe, using an elbow. Next, attach flanges to the top of the top pipe and to the bottom of the bottom pipe.

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP10_s4x3

Original_Brian-Patrick-Flynn-Pine-Plumbing-Shelving-STEP10_s4x3

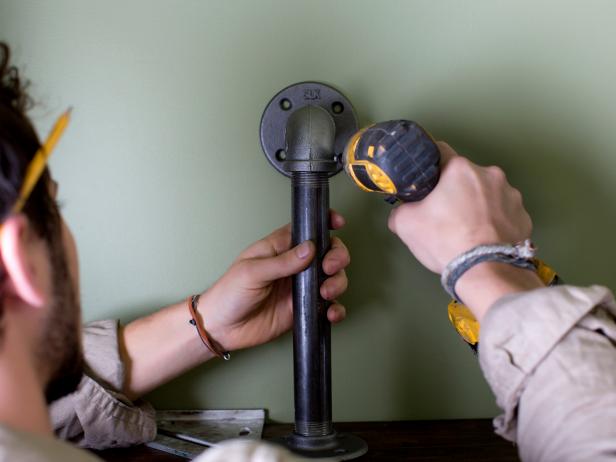

Attach Wall-Mounted Stabilizer

Using a drill and wood screws, secure the wall-mounted stabilizer to the top of the highest shelving box, then attach directly into the wall studs using drywall screws.
