Tunnel Skylight

Bring natural light to any room with a sun tunnel skylight. Steve Watson shows you how.
Similar Topics:

Materials and Tools:

HDSWT-206_Skylight_after

HDSWT-206_Skylight_after

After: Real sunlight improves the lighting and the mood.

two SunTunnel skylight kits
caulk
caulking gun
chalk line
drywall circle cutter
drywall jab saw
flat crowbar
hammer
hook blades for utility knife
measuring tape
pencil
reciprocating saw
safety glasses
utility knife
extension ladder
three bricklayers scaffolds

Steps:

HDSWT-206_Skylight_roofjack

HDSWT-206_Skylight_roofjack

1. If the roof is steeper than you feel comfortable with, rent or buy a set of roof-jacks. Roof-jacks are adjustable steel brackets that allow you to nail the jack to the roof, then slide a plank into the bracket to give you a level standing surface on the roof.

2. If you can get into the attic, be sure that there are no obstructions like electrical wiring, plumbing, or HVAC ductwork that will interfere with your installation.

HDSWT-206_Skylight_steveandholes

HDSWT-206_Skylight_steveandholes

3. SunTunnels are adjustable, so the hole in the roof where the exterior bubble goes does not have to directly align with the trim ring in the interior ceiling. Check the documentation for the minimum and maximum allowances. Start inside the room, and determine where you want to locate the interior fitting or fittings.

HDSWT-206_Skylight_bighole

HDSWT-206_Skylight_bighole

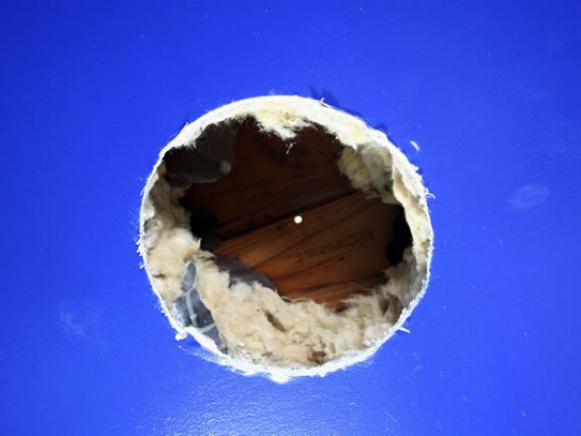

Cut a hole in the drywall by marking the hole with the circle cutter, and remove the drywall with a jab-saw.

4. Cut out and remove any insulation.

5. For attic installations, you have more flexibility. You can mark anywhere that the tunnel’s reflective ductwork will reach. Mark the roof from below by driving a nail or screw up through the roof. This will mark the center of the hole you’ll cut from above.

HDSWT-206_Skylight_anotherbighole

HDSWT-206_Skylight_anotherbighole

6. Get on the roof and locate your center mark. Using the template included in the kit, cut a circle through the shingles and plywood using a reciprocating saw with a demolition blade. Demolition blades have bigger, wider spaced teeth. These blades can cut through shingles, plywood, nails, roofing paper and just about anything else.

HDSWT-206_Skylight_upontheroof

HDSWT-206_Skylight_upontheroof

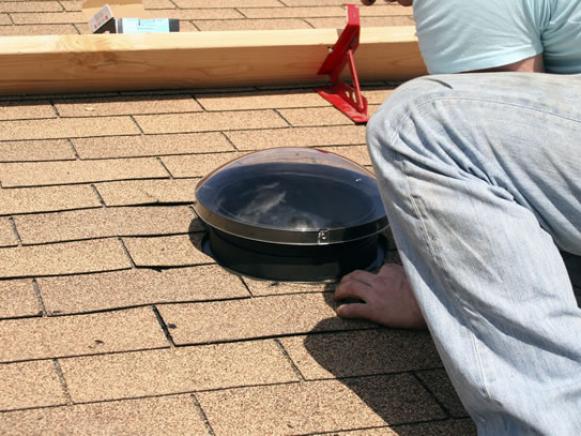

7. Following the instructions in the box, install the bubble. Slide the flashing under the shingles, and tack into place using 1-1/2 inch roofing nails. If the shingles are stuck together (in warmer weather, they tend to stick), gently separate them by sliding the flat crowbar between the layers.

8. From the attic or room below, clip the reflective tunnel to the skylight bubble and extend the tunnel to the bracket in the ceiling.

9. Now, simply clip the trim kit to the tunnel bracket.
