Faux Ceiling Beams Create Rustic Feel

Add a rustic touch to a cathedral ceiling with lightweight fake beams.
HDSWT-205_Beams_after

HDSWT-205_Beams_after

After: Faux wood beams add a rustic touch to the room.

After: Faux wood beams add a rustic touch to the room.

Materials and Tools:

six 12-foot faux beams
six 10-foot 2x4s
three tubes construction adhesive
four 3-inch eyeball lights
two box 4-inch x 3/16 toggle bolts
one old-wall ceiling box
12 feet base molding
angle finder
chalk line
cordless drill with battery and magnetic screw tip
drill bits
hand saw
measuring tape
pencil
power miter box

HDSWT-205_beam_before

HDSWT-205_beam_before

Steps:

1. Faux wood beams are a custom item, so you will need to measure your space and order the beams. Typically faux beams are made from polyurethane and laminated with either real wood or a composite that stains like wood.

2. This project used three beams space evenly on a 17-foot ceiling that sloped. When working this high it's much safer to rent scaffolding. Set up and secure your scaffolding, and then mark the ceiling.

3. Using the angle finder, measure the angle at the top and bottom of the ceiling slope and write down the figures.

HDSWT-205_Beams_chalkline

HDSWT-205_Beams_chalkline

4. Measure the spacing of the beams, and then snap a chalk line on the ceiling to mark locations for the mounting blocks. Measure the total length of the beam, from top to bottom of the ceiling, and mark the center of the beam on the ceiling.

HDSWT-205_Beams_cleats

HDSWT-205_Beams_cleats

5. Cut the mounting blocks, using the power miter saw, to fit the interior dimension and angle of the beam. Mount them every 24 to 36 inches along the chalk line you snapped earlier. If possible, mount the blocks to ceiling joists. If there are no joists, use 4-inch toggle bolts to install the blocks. Tip: After installing the block, put a strip of painter’s tape on the ceiling next to the block, so you can locate the blocks after the beam is up.

HDSWT-205_Beams_cut

HDSWT-205_Beams_cut

6. Cut the top beam to the angle you measured. Use a hand saw, or fine tooth jigsaw to make the cut. Measure the distance between the peak and the center mark you made earlier, and cut the beam off square. Do the same for the bottom half of the beam.

7. Drill holes in the beams that will accommodate the new lighting. Line up the new lighting with the old lighting to save.

8. Remove the old ceiling fixture and toss out. The new lighting will hook to these wires. If necessary, add a length of wire to the old wiring to reach the new. Make sure the connections are secure and wiring tucked inside the junction box. All electrical connections must be contained in a junction box with no wire nuts hanging out in a wall or ceiling.

HDSWT-205_Beams_fit

HDSWT-205_Beams_fit

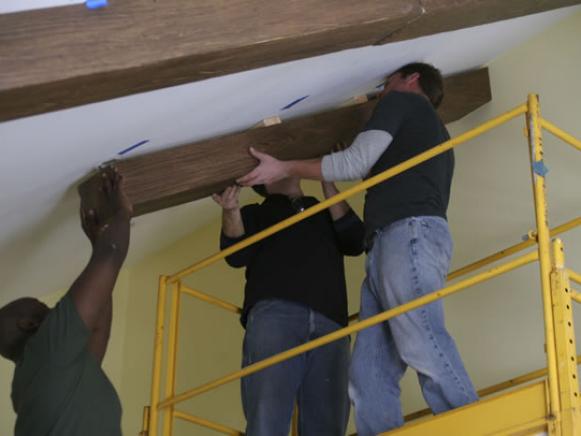

9. Tuck wires into the ceiling box, and run the wire into the beam, being sure the beam will not pinch the wire against the mounting block when installed.

10. Slide the beam over the mounting blocks, and push up tight to the ceiling.

HDSWT-205_Beams_attach

HDSWT-205_Beams_attach

Screw the beams into the blocks using 2-inch drywall screws.

11. Use color-matched wood filler to fill screw holes.

12. Glue and tack the straps that hide the seams over the center on the beam.
